SLA (Stereolithography)>

A 3D printing method that uses a laser to cure layers of a liquid photopolymer resin together. This is often used to create high-quality, accurate prints with smooth surfaces and intricate details. Using an SLA 3D printing gives a versatile range of materials available.

Depending on the formulation and chemistry, some resins can be leveraged to produce pure silicone, polyurethane, or ceramic parts. Resin 3D printing also offers the broadest spectrum of biocompatible materials, opening up doors in end-use products, medical equipment, 3D printing at the point of care, and medical procedure innovation.

How Does SLA 3D Printing Work? >

SLA 3D printing uses a light source to cure liquid resin into three-dimensional objects by exposing a vat or tank of resin to a light source, which hardens it

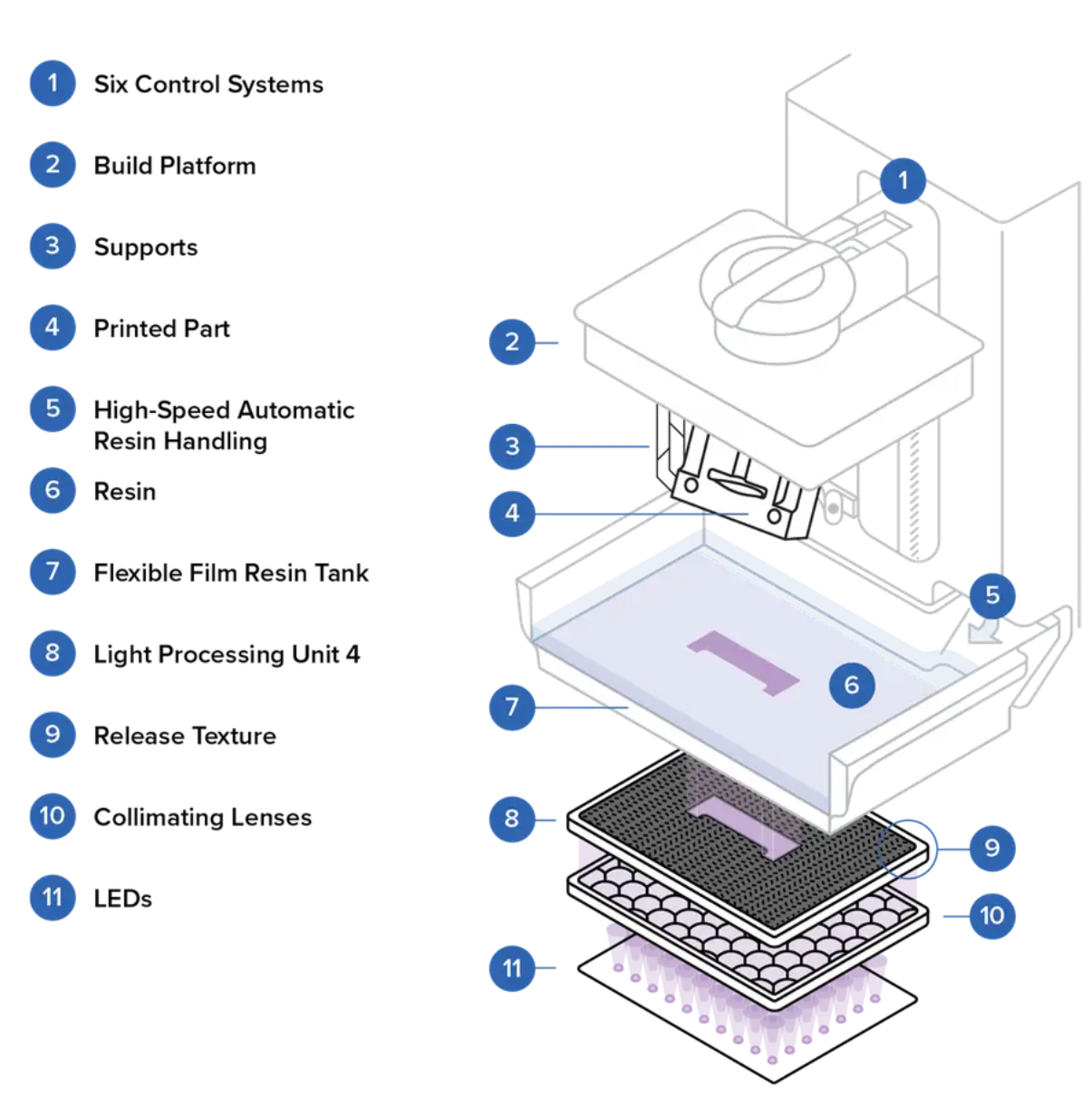

diagram of a SLA printer
Formlabs
